Tekonsha Brake Controller Comparison

Updated March 24, 2016 by Partsengine Canada

PartsEngine Canada is your one-stop source for brake controllers, we offer five different models of Tekonsha brake controllers to provide the right fit for your towing setup and budget. Tekonsha is the industry leader and innovator in electric trailer brake controls and breakaway systems. No matter what you are towing, Tekonsha can help you stop it. Unlike timed brake controls that deliver the same power under all braking conditions, Tekonsha Brake Controls use Proportional Technology that senses the type of braking event, and applies appropriate power to the trailer brakes

Eliminate Hardwiring All Tekonsha brake controls include adapter for OE Wire Harnesses. Simply “Plug & Play!”

Tekonsha Brake Controller Comparison Chart

See all Brake Controllers >

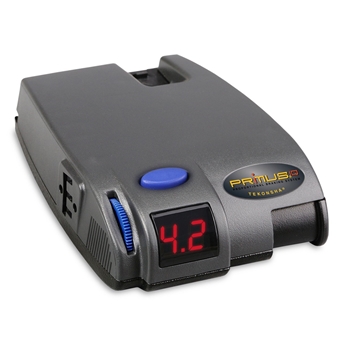

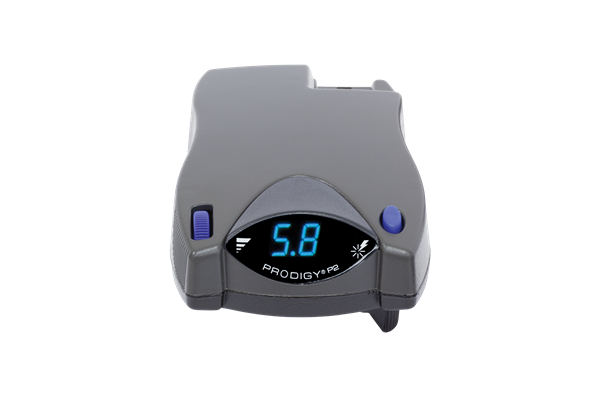

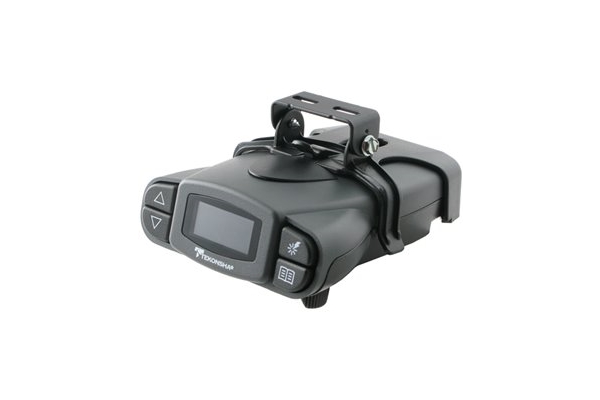

	Tekonsha Voyager	Tekonsha Primus IQ	Tekonsha P2	Tekonsha P3	Tekonsha Prodigy RF
Price (CAD)	$95.02	$123.99	$191.05	$222.99	$470.99
Warranty	Limited 5-Year	Limited Lifetime	Limited Lifetime	Limited Lifetime	Hand Held Unit: Limited 5-Year Mounted Power Module: Limited 15-Year
Delivery Fee	Free Shipping	Free Shipping	Free Shipping	Free Shipping	Free Shipping
Sensor Type	Proportional	Proportional	Proportional	Proportional	Proportional
Number of Axles	1 to 4	1 to 3	1 to 4	1 to 4	1 to 3
Display	LED	Digital	Digital	LCD	Digital
Trailer Connection Indicator	Yes	Yes	Yes	Yes	Yes
Self Diagnostic	None	Yes	Yes	Yes	Yes
Power Conservation Mode	None	Yes	Yes	Yes	Yes
Reverse-Polarity Protected	None	Yes	Yes	Yes	Yes
Accelerometers	Yes	Yes	Yes	Yes	Yes
Leveling	Manual	Automatic	Automatic	Automatic	Automatic
Manual Override	Yes	Yes	Yes	Yes	Yes
Ramp Up Speed Control	Yes	Yes	Yes	Yes	Yes
Power Output Control	Yes	Yes	Yes	Yes	Yes
Boost Feature	None	Included	Included	Included	Included
Mounting	Included	Included	Included	Included	Included
Notes		Up to 3 Boost levels.	Works Proportionally in Reverse. Up to 3 Boost levels.	Works Proportionally in Reverse. Up to 3 Boost levels.	Perfect for Shared Trailers or Business Fleets. Works Proportionally in Reverse. Up to 3 Boost levels.

Shop Brake Controllers with Partsengine CanadaView all

• Sensor Type - Type of brake controller
• Number of axles - Each axle handles 2 wheels (so trailers with 4 wheels has 2 axles, 6 wheels has 3 axles)
• Display - Type of display on controller
• Trailer Connection Indicator - A light or message on the controller display telling you if the trailer is connected properly
• Self-Diagnostic - The controller constantly monitors connections for potential problems
• Power Conservation Mode - The controller reduces power sent to trailer brakes when they're not in use, reducing wear
• Reverse-Polarity Protected - Protects the braking system from shorts in the system
• Accelerometers - If a controller contain accelerometers or not
• Leveling - Controllers that contain accelerometers typically need to have stable leveling to function, although most controllers offer automatic leveling now
• Manual Override - All controllers are required to have a manual override switch or lever, which apply the trailer brakes on command
• Ramp Up Speed Control - Adjusts how quickly the controller ramps up to maximum power output, some models have preset levels or "boosts"
• Power Output Control - Adjusts maximum power to be outputted to the trailer brakes
• Boost Feature - Preset ramp up speeds typically used for various towing applications
• Mounting - Mounting brackets and hardware to install the controller in the dash area

Why you need Breakaway Systems

In the unlikely but dangerous case that your trailer becomes loose and disconnects, a breakaway system will apply the trailer brakes the moment the trailer becomes unhitched. This safety system is required by law in many provinces. Even if not required by law in your province, breakaway systems are a great addition to any towing set up to give peace of mind while towing that your trailer is safe.

See Trailer Breakaway System
