Draw-tite Brake Controller Comparison
Updated March 14, 2016 by Partsengine Canada
PartsEngine Canada is your one-stop source for electric brake controllers, we offer four different models of Draw-tite brake controllers to provide the right fit for your towing setup and budget. Draw-Tite manufactures several electric brake controllers, one or more of which are designed to meet your unique requirements for operational control, weight class, hauling vehicle capabilities, or other factors. Draw-Tite electric trailer brake controllers are electronic devices that supply power from the tow vehicle to the trailer's electric brakes. Many styles of electric brake controllers are available that differ in how they look, and the number of brakes they can power, but all of them can be assigned to one of two main groups, Proportional Brake Controllers, or Time Delayed Brake Controllers.
Draw-tite Brake Controller Comparison Chart

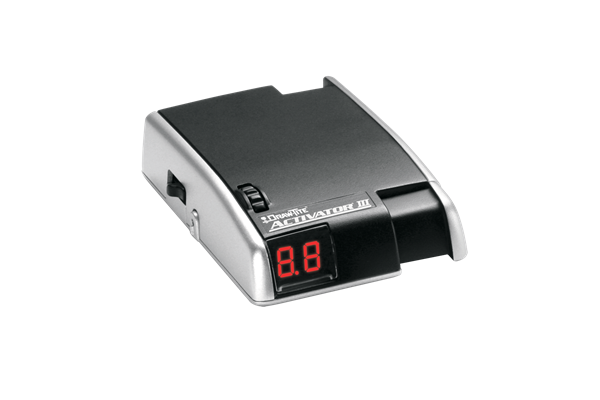

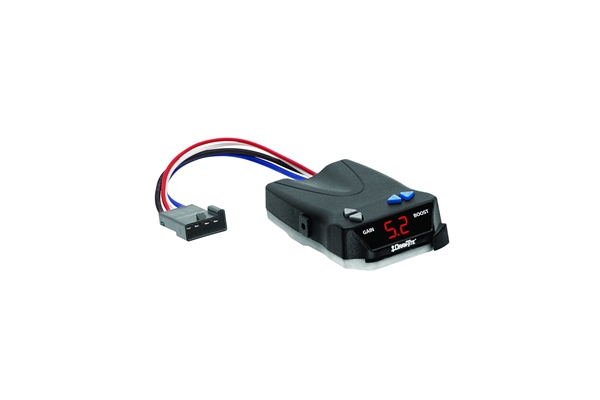

See all Brake Controllers >Draw-Tite Activator | Draw-Tite Activator III | Draw-Tite Activator IV | Draw-Tite I-Command | |
Price (CAD) | $61.39 | $103.99 | $91.06 | $121.99 |
Warranty | Limited 3-Year | Limited Lifetime | Limited Lifetime | Limited Lifetime |
Delivery Fee | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
Sensor Type | Time Activated | Time Activated | Time Activated | Proportional |
Number of Axles | 1 to 2 | 1 to 4 | 1 to 4 | 1 to 4 |
Display | LED | Digital | Digital | Digital |
Trailer Connection Indicator | None | Yes | Yes | Yes |
Self Diagnostic | None | Yes | Yes | Yes |
Power Conservation Mode | None | None | None | None |
Reverse-Polarity Protected | None | None | Yes | Yes |
Accelerometers | None | None | None | None |
Leveling | None | None | None | None |
Manual Override | Yes | Yes | Yes | Yes |
Ramp Up Speed Control | Yes | Yes | Yes | Yes |
Power Output Control | Yes | Yes | Yes | Yes |
Boost Feature | None | None | None | Included |
Mounting | Included | Included | Included | Included |
Notes | Up to 3 Boost Levels |
Shop Brake Controllers with Partsengine CanadaView all
- Sensor Type - Type of brake controller
- Number of axles - Each axle handles 2 wheels (so trailers with 4 wheels has 2 axles, 6 wheels has 3 axles)
- Display - Type of display on controller
- Trailer Connection Indicator - A light or message on the controller display telling you if the trailer is connected properly
- Self-Diagnostic - The controller constantly monitors connections for potential problems
- Power Conservation Mode - The controller reduces power sent to trailer brakes when they're not in use, reducing wear
- Reverse-Polarity Protected - Protects the braking system from shorts in the system
- Accelerometers - If a controller contain accelerometers or not
- Leveling - Controllers that contain accelerometers typically need to have stable leveling to function, although most controllers offer automatic leveling now
- Manual Override - All controllers are required to have a manual override switch or lever, which apply the trailer brakes on command
- Ramp Up Speed Control - Adjusts how quickly the controller ramps up to maximum power output, some models have preset levels or "boosts"
- Power Output Control - Adjusts maximum power to be outputted to the trailer brakes
- Boost Feature - Preset ramp up speeds typically used for various towing applications
- Mounting - Mounting brackets and hardware to install the controller in the dash area
Why you need Breakaway Systems
In the unlikely but dangerous case that your trailer becomes loose and disconnects, a breakaway system will apply the trailer brakes the moment the trailer becomes unhitched. This safety system is required by law in many provinces. Even if not required by law in your province, breakaway systems are a great addition to any towing set up to give peace of mind while towing that your trailer is safe.
