Warn 105101 | Warn Industrial Hoist Winch 105101
$941.25
REG $1,082.44;
Warn Product Expert is nline !
FOUND A LOWER PRICE? We'll Beat Any Lower Price You Find!
Some Condition Applies*
Warn 105101 application specs:
Product Description

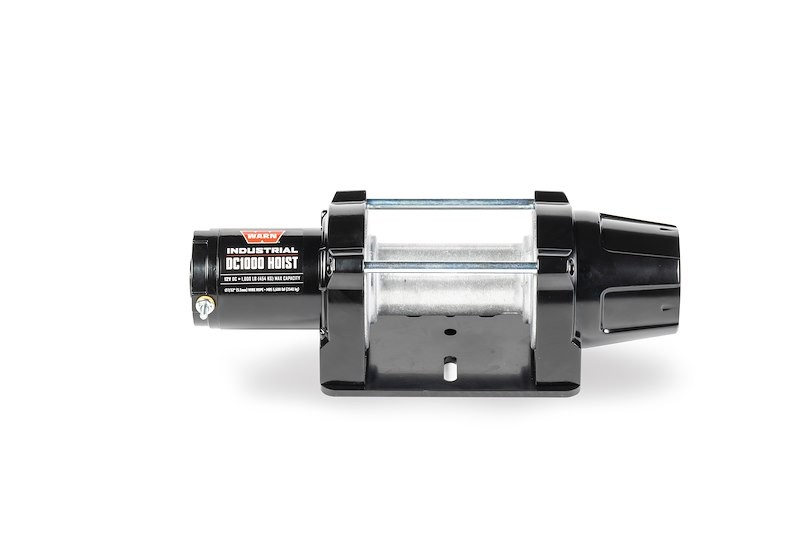

The DC1000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1000 hoist is compact and comes standard with a steel mounting plate and hardware to make installation quick and easy.Features & Benefits
- Combines A Powerful Permanent Magnet DC Motor With Robust Sealing And Our Proven 3-Stage All Metal Gear Train
- Incorporates An Automatic Mechanical Brake That Holds Full Rated Load
- Durable Powder Coated Finish Stands Up To The Elements And Looks Great
- 1000 Pound Line Pull Capacity
- Limited 1 Year Warranty
Attributes
- Winch Rating: 1000 Pound
- Recommended Use: Industrial
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): Without Rope
- Line Material: Without Rope
- Remote Type: Without Remote
- Universality: Fully Universal
- Mounting Pattern Size: 6.6 Inch Length X 3 Inch Width
- Brake Type: Automatic Disc
- Max Amp Draw: 87 Amp Draw At 1000 Pound
- Gear Reduction Ratio: 136:1
- Includes Mounting Hardware: Yes
- Thermal Shutoff: No
- Color: Black
- Fairlead Type: Without Fairlead
- Line Speed At Max Pull: 19 Feet Per Minute At 1000 Pound
- Motor Type: Permanent Magnet
- Drive Gear Type: Planetary
- Line Diameter (IN): Without Rope
- Mounting Hole Quantity: 4
- Drum Material: Aluminum
- Estimated Install Time (Hours): 2
