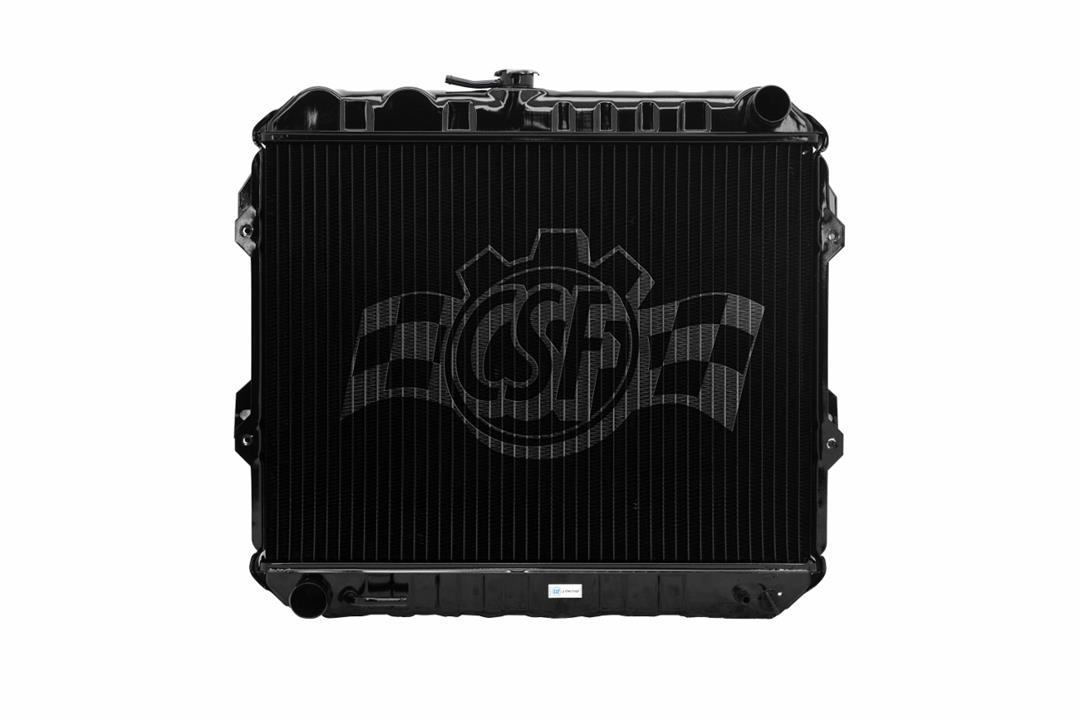

CSF Cooling 2314 | CSF Cooling 2314 CSF 92-95 Toyota 4Runner OEM Replacement Radiator

CSF Cooling   2314  application specs:

Product Description

CSF factories are ISO/TSO certified, CSF Radiators are designed and built to High Performance Standards and sold worldwide for over 50 years. Our Radiators are carefully engineered and Wind Tunnel Tested in laboratory for Cooling Performance Validation, We have over 10,000 different models of Radiators that we manufacture and supply for all the leading brands of vehicles on the road.

Features & Benefits

• OEM Specified Copper-Brass Construction
• Easy To Recore And Repair
• No Risk For Coolant Contamination And Damage To Sensitive Seals, Water Pump And Thermostat
• Tubes - Special Coated OEM Specified Double Lock Seam Joints For Long Life
• Side Channels - Coated Steel For Strength And Durability
• OEM Specified "Single Piece - Deep Drawn" Brass Tanks With Ribs For Added Strength And Durability
• Reinforced Inlet And Outlet Connections With "Thru Pipe Design"
• 100 Percent Leak Tested Before Leaving Factory At 150 Percent Of Operating Pressure
• All Components Are Installed, Torqued And Tested On Radiator During Assembly
• Limited 2 Year Warranty

Attributes

• Flow Direction: Down Flow
• Overall Length (IN): OEM
• Overall Height (IN): OEM
• Overall Depth (IN): OEM
• Core Rows: 3
• Core Material: Copper
• Inlet Hose Location: Upper Driver Side
• Inlet Size (IN): 2-1/4 Inch Width x 20-11/16 Inch length
• Outlet Hose Location: Lower Driver Side
• Outlet Size (IN): 2-1/4 Inch Width x 20-11/16 Inch length
• Finish: Natural
• Color: Black
• Core Length (IN): 15-3/4 Inch
• Core Height (IN): 15-3/4 Inch
• Core Depth (IN): 1-11/16 Inch
• Tank Material: Brass
• With Radiator Cap: No
• With Transmission Cooler: Yes
• With Engine Oil Cooler: Yes
• Includes Fittings: Yes
• Includes Mounting Hardware: No
