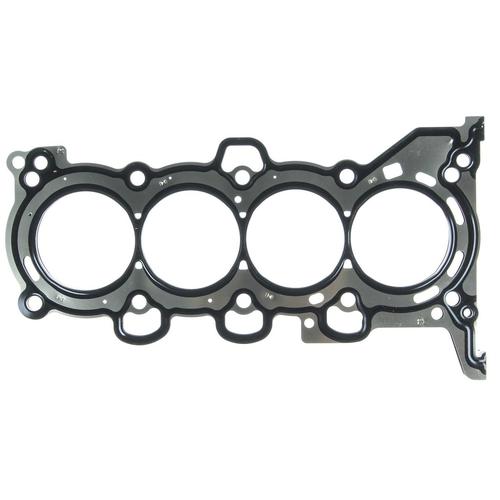

Clevite   55001  application specs:

Attributes

• Engine Compatibility: OEM
• Material: Multi-Layer Steel
• Bore Diameter: 3.24 Inch
• Compression Thickness: 0.04 Inch

Product Description

MAHLE performance head gaskets are comprised of 3 stainless steel layers. Sealing beads surround the combustion chamber and coolant passages emphasizing clamp load in these specific areas. Precision tooling provides optimum bead height, width, profile, and bore concentricity.

Features & Benefits

• Constructed From Multi-Layered Steel
• Comprised Of Multiple Embossed Layers Of Fluoroelastomer Coated And Uncoated 301 Stainless Steel
• Design Requires Less Clamp Load Creating Less Bore Distortion And Conforms Load Distribution Across The Sealing Surface
• Handle Any Application From Naturally Aspirated To Boost Or Nitrous
• Center Or Shim Layer Is An Uncoated Stainless Steel Layer Which Can Be Varied To Accommodate Multiple Thickness Requirements
• Embossed Outer Layers Of The Gasket Meet The Demands Of A Variety Of Harsh Sealing Environments, Load Conditions And Sealing Surface Finishes
• Limited 1 Year Warranty
