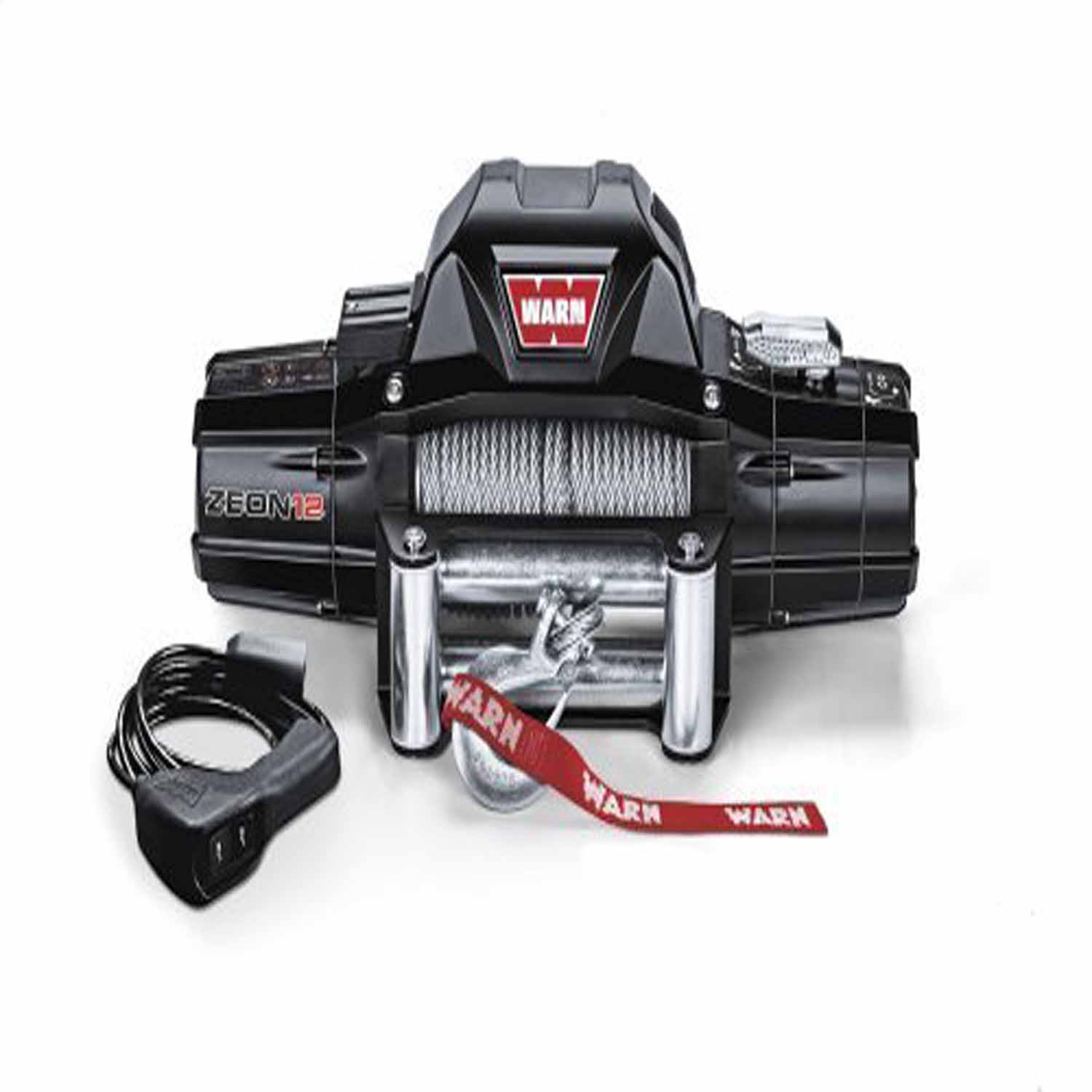

Warn 89120 | ZEON 12 Winch
()
REG $1,851.29;
Universal Fit Product.
Warn Product Expert is nline !
FOUND A LOWER PRICE? We'll Beat Any Lower Price You Find!
Some Condition Applies*
Hot Product recommendation:
Warn 89120 application specs:
Product Description
The WARN ZEON 12 is the new face of winching. Bolt one on, and you'll be ready for anything. A top choice for those with heavily loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 Pounds single line pulling capacity. The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything.
Features & Benefits
- Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
- Gear Train And Motor Deliver Reliable Pulling Power That Is Fast, And Quieter Than Ever
- Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion, Improved Winch Sealing To Keep The Elements Out
- 12,000 Pounds (5443 Kilogram) Single Line Pulling Capacity
- Includes 80 Foot Of Durable 3/8 Inch Galvanized Steel Wire Rope
- Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
- Limited Lifetime Warranty
Attributes
- Winch Rating: 12000 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 80 Feet
- Line Material: Steel
- Remote Type: Wired
- Universality: Fully Universal
- Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
- Brake Type: Automatic Cone
- Max Amp Draw: 469 Amp Draw At 12000 Pound
- Gear Reduction Ratio: 261:1
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Black
- Fairlead Type: Roller
- Line Speed At Max Pull: 3.3 Feet Per Minute At 12000 Pound
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/8 Inch
- Mounting Hole Quantity: 4
- Estimated Install Time (Hours): 2
Product features:
- 12,000 lb. (5443 kg) single-line pulling capacity.
- Includes 80' of durable 3/8" galvanized steel wire rope.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
- Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is lightweight, and has an integrated rope anchor for easy rope installation.
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Learn More about
Warn Universal ZEON 12 Series 12000 lb Electric Winch
The WARN ZEON 12 is the face of winching. Bolt one on, and you'll be ready for anything.
A top choice for those with heavily-loaded off-road vehicles, the ZEON 12 features an innovative design, increased performance and durability, steel rope, and a hefty 12,000 lb. single-line pulling capacity.
The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything.
